WMD forming steel tube connection solution
Double seal-FKM seal slot and 24°conical surface seal created in same place
Absorb vibration-C-type locked ring clamping pipe, absorb any vibration, avoid loose
High efficiency- one time forging, no per-install, no welding, no need second process
Economy-localization batch production, low cost.
Automated process steps by light beam
Automatically change from removal to insert position
Manual or auto model
Range selection of tube size for optimal forming process
Change of forming head and clamping jaws without additional tools
Short positioning times
6-10 mm < 10 sec.
12-22 mm < 15 sec.
25-42 mm < 20 sec.
Remote assistant, remote diagnose via IOT with high efficient service.
WMD form machine make pipe conection easily, model 306 and 308 for choose
WMD Forming machine 306 adopt tow hydraulic system, one hydraulic pressure are 63Mpa, another is 6Mpa, the Ultrahigh pressure was created by piston pump directly, low pressure was created by gear pump, pump and ultrahigh pressure valve are import from Germany brand of HAVE , more efficiency and more quiet.
WMD Forming machine 308 adopt tow hydraulic system, one hydraulic pressure are 63Mpa, another is 6Mpa, the Ultrahigh pressure include interior and exterior two oil ways, gear pump create 18.5Mpa pressure in exterior way, and interior 63Mpa created with two boosters, all valve are working in low pressure of 18.5Mpa and 6Mpa, improve the system stability and extend the life of machine.
Improved ergonomics and user-friendliness by rearrangement of the operator keys
Manual or Auto model
Range of Tube Size selection
Changing head and jaws without tools
Castors with PU wheels for convenient transportation
WMD forming tube connection solution

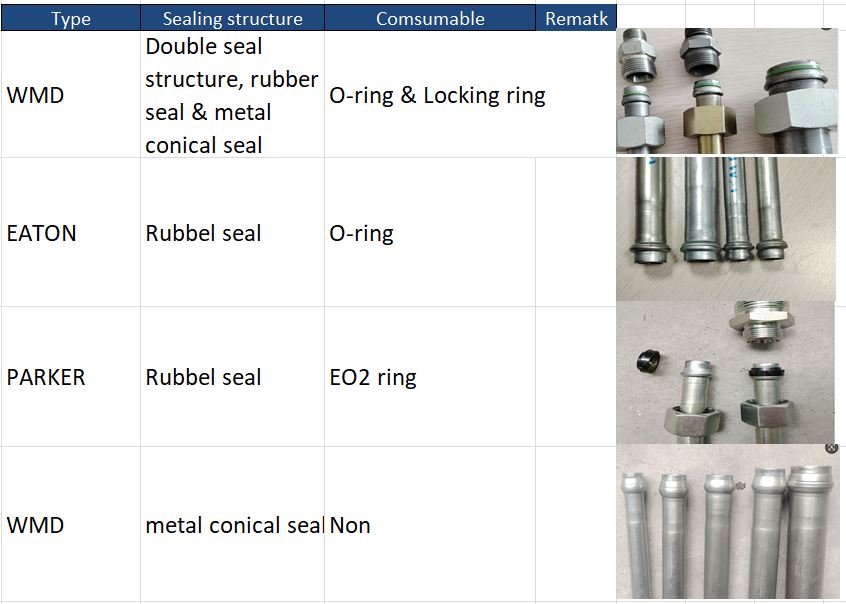

Two quasi-static sealing concept

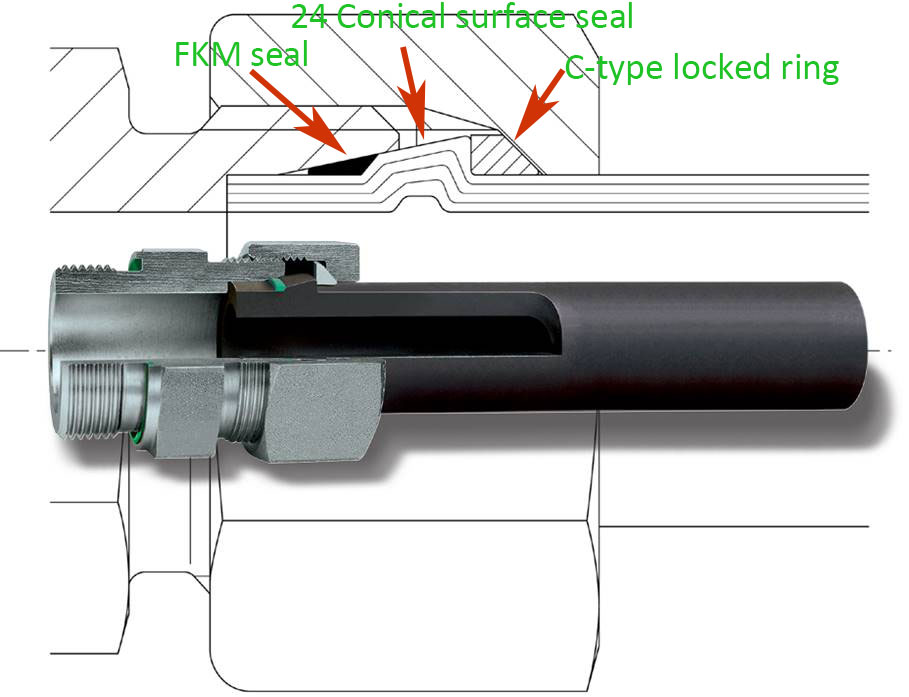

Primary static 24 conical metal surface seal
FKM seal avoid seepage leakage
Absorbability of pressure shocks on soft-sea
Gap extrusion of soft-seal inside the system excluded
A simple & high reliable leak-free steel tube connection system, carben steel and stainless steel tube are suitable.

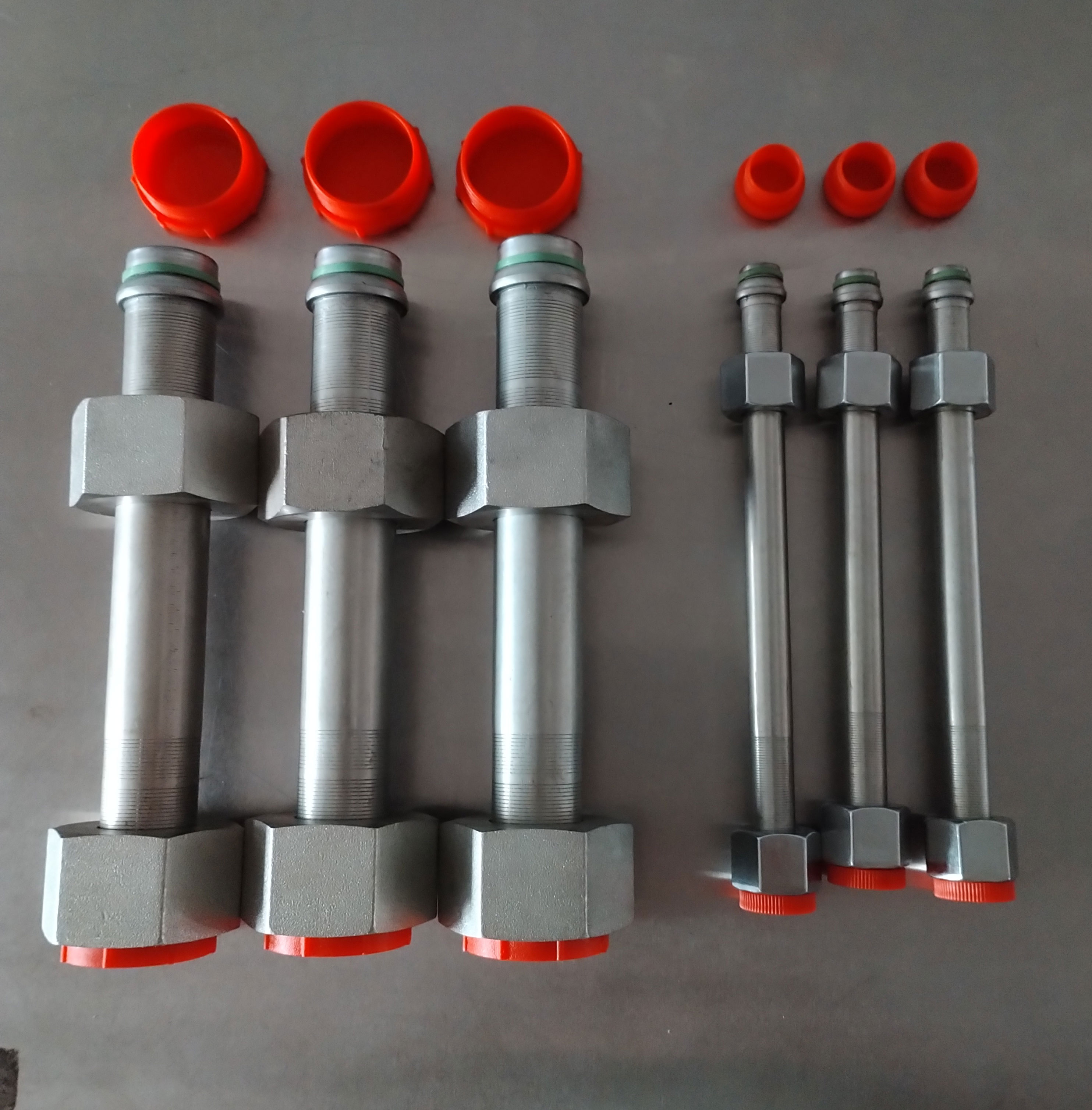

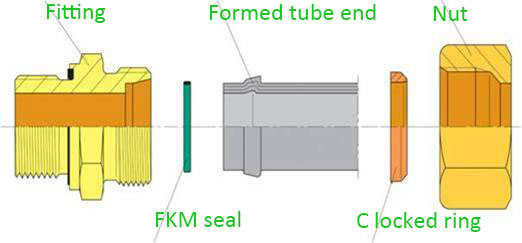

Standard fittings
Formed tube end
FKM Seal ring

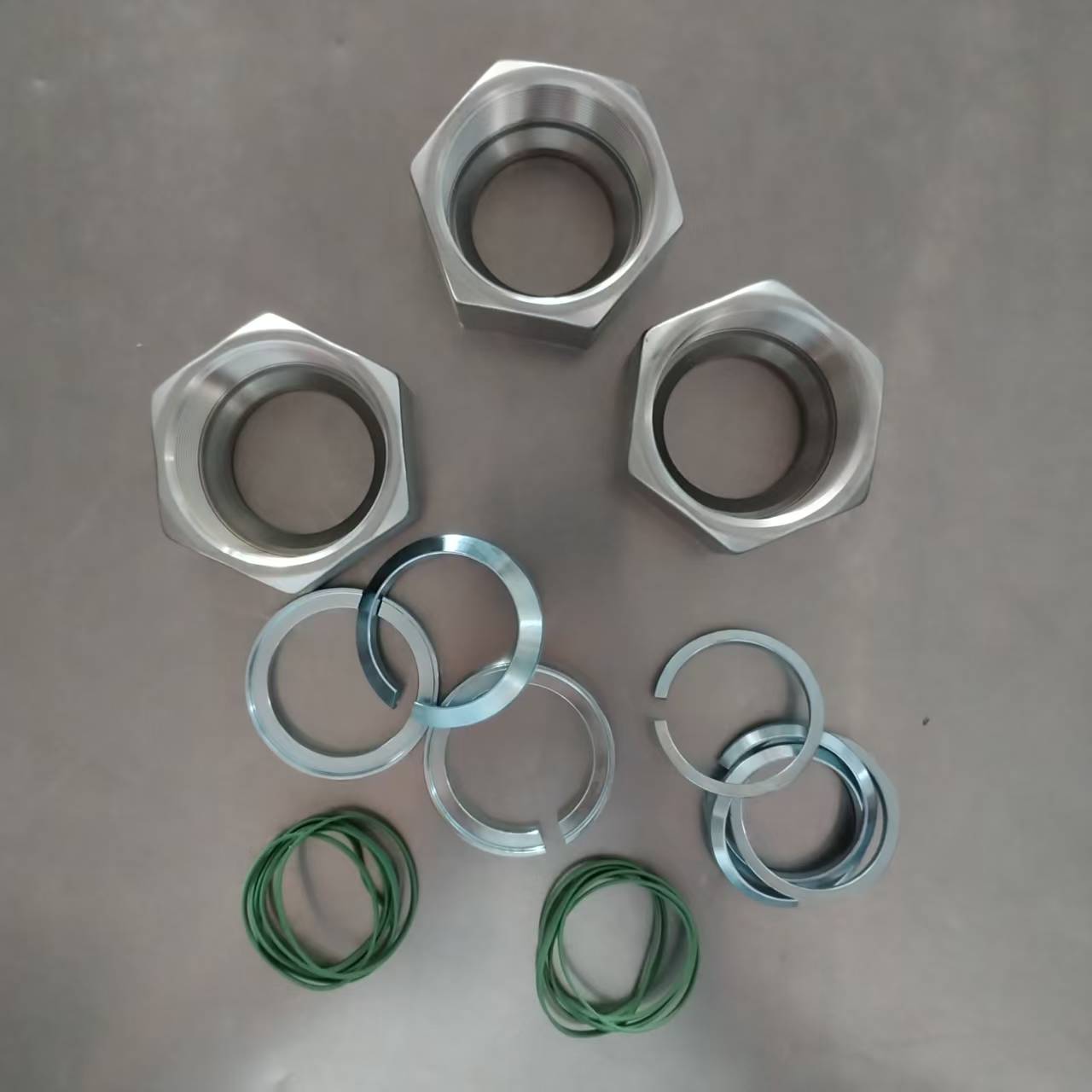

Standard din nut with C-type Locked ring
—-A simple & high reliable connection system created
Variouseness connection type can be choosed, it depend on die and jig
Relative products
Offer a totally solution, form machine parts, die and jig to comsumable of SQR nut and rubber ring.

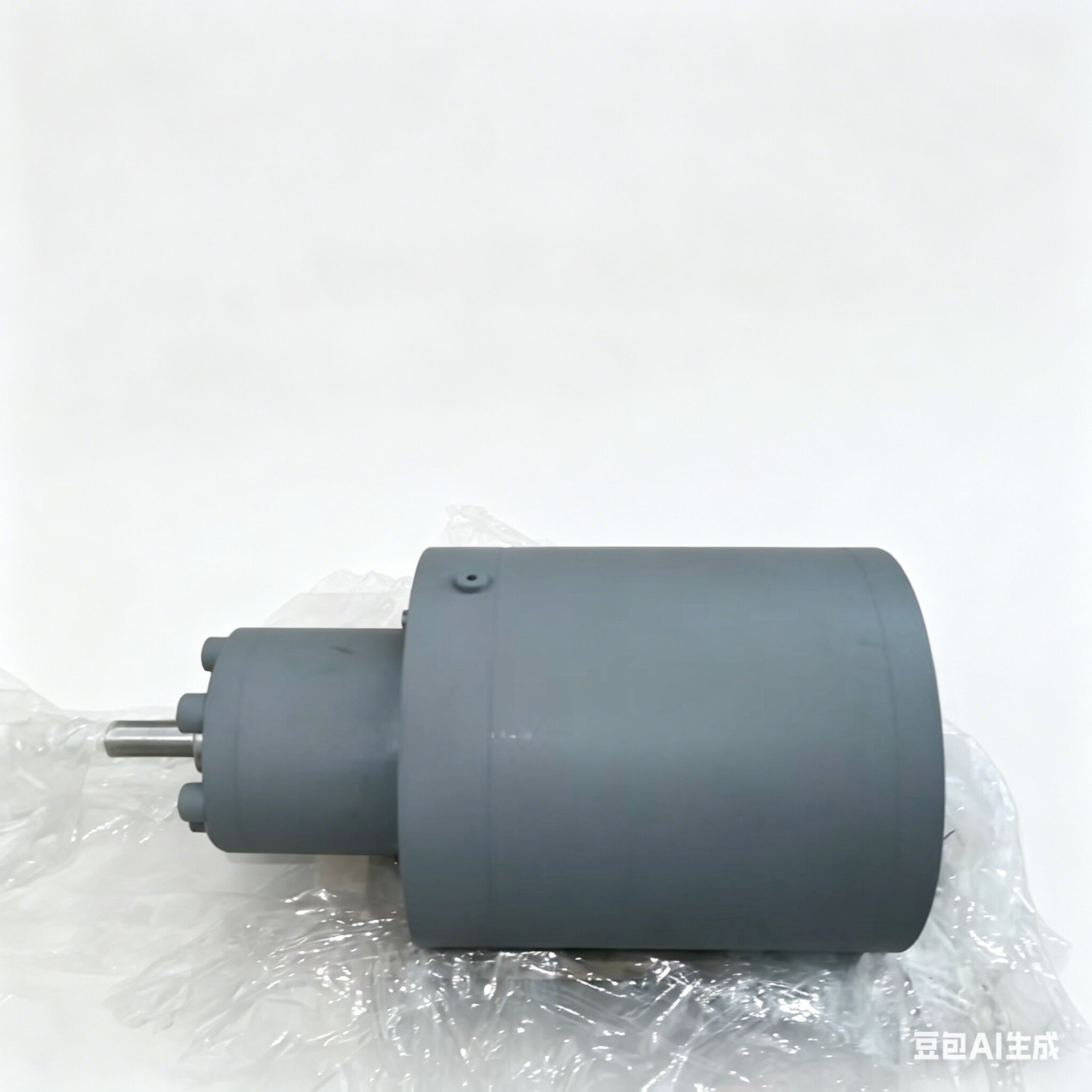

Hydaraulic cylinder
Tube assemble

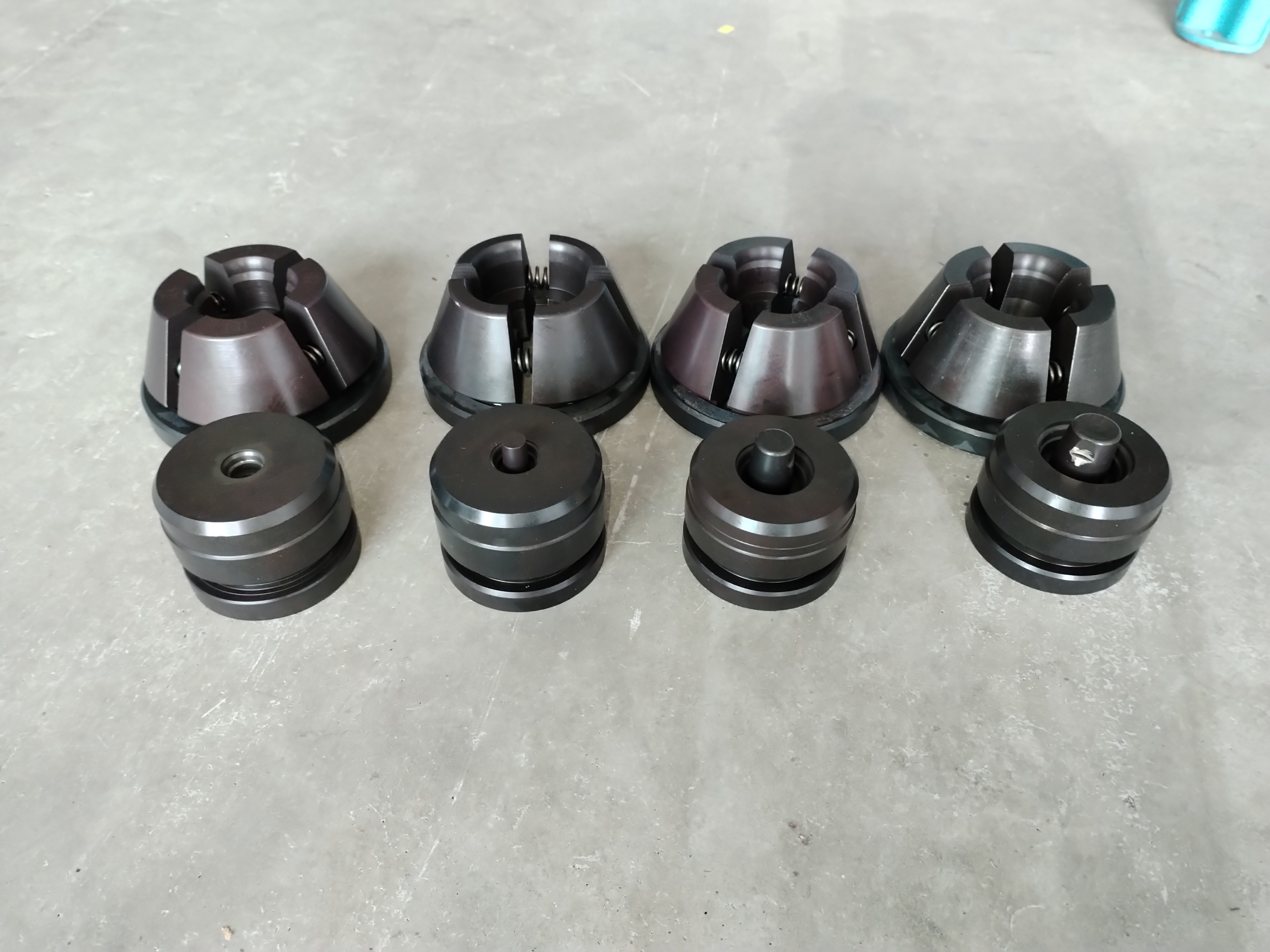

Die & Jig
SQR Nut & seal
We’ve worked with some of the best companies.
FAQ
What tube size range can the standard WMD forming machine process?
Standard machine covers tubing outer diameter from Ø6mm to Ø42mm, applicable for seamless steel tube, stainless steel tube used in hydraulic pipeline. We customize special machines for tubes beyond this dimension upon request.
Can the machine make non-standard forming shapes?
Yes. Custom molds can be developed for special groove, taper or irregular end forming according to customers’ tube drawings. Special stroke and hydraulic pressure are configurable for bespoke forming requirements.
Is turnkey solution available?
We supply complete package including main forming machine, matched hydraulic power unit, customized forming dies and operation technical guidance.
What power supply does the machine need?
Standard: 380V/50Hz three-phase power; 220V or 415V/60Hz can be customized for overseas market. Confirm local voltage before order.
Does Does the machine need foundation fixation during installation?
No fixed foundation required. Equipped with moving casters, can be freely shifted on flat workshop floor and fixed via support foot pads.
