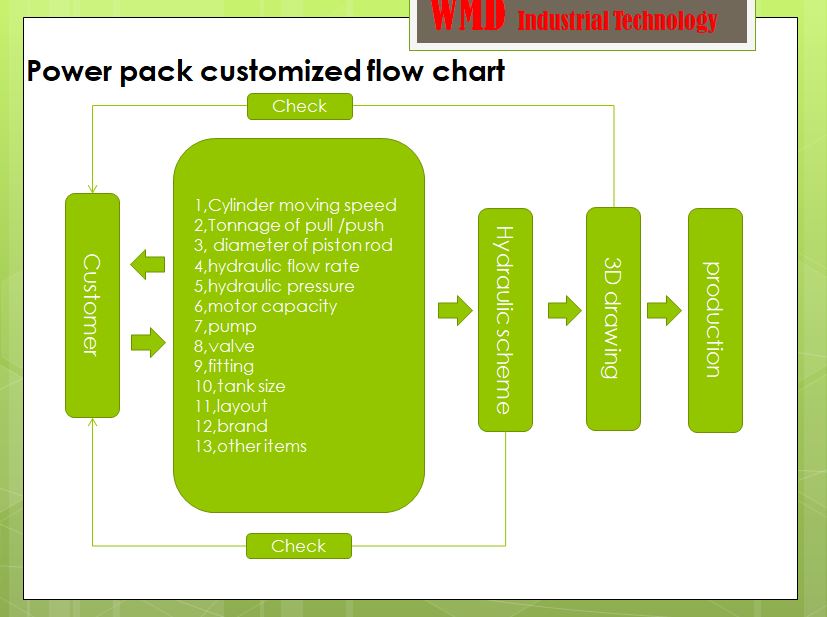

WMD offer full range of Hydraulic station, which are bespoke and designed for industrial applications based on customer requirements, offer customized service, including hydraulic scheme design, 3D drawing design, hydraulic parts selection, and finally producing for full power pack development processing.
Hydraulic pressure and flow
WMD hydraulic station involve hydraulic flow range from 2.1 litres per minute to as high as 500 litres per minute, and operating pressures exceeding 700 bar, we have the capability to meet diverse industrial needs.
Our hydraulic engineers looked at the specification and established to refurbished and designed a more efficient and ever-improving technology HPU system,
WMD are working with our customers to provide an uncompromised, cost-effective and sustainable solution, aim to continuously add value to our clients businesses, and build a strong relationship that last.
Technical Advantages & Service Commitment
experienced architects to renowned engineers, our comprehensive team of professionals caters to the needs of diverse teams.
Hydraulic station
use for trush press station
Hydraulic station
for trush press station
Hydraulic station
for trush press station
Hydraulic station
for rubber compounding
We’ve worked with some of the best companies.
FAQ
How to confirm the required motor power and tank volume for a hydraulic station?
Calculate based on cylinder thrust, rated working pressure, required flow rate and cylinder moving speed.
Confirm system working pressure (common specs: 4/7/14/16/21MPa);
Calculate pump displacement according to cylinder volume and reciprocating speed;
Match motor power with pump displacement and system pressure;
Standard tank capacity = 3~5 × pump’s per-minute flow; 5~8 × pump flow for long-duration continuous operation. Custom selection support available with equipment parameters provided.
What’s the maximum adjustable system pressure? Can pressure be adjusted on-site?
Pressure range is determined by relief valve specification: low pressure 0~7MPa, medium-high pressure 0~21MPa, high pressure 0~21MPa. Fine-tuning is allowed on-site within the rated pressure of pump, valve block and tubing. Replacing pump, seals and valves is mandatory if upgrading beyond original design pressure.
Vertical or horizontal hydraulic unit, which to choose?
Horizontal type: low height for limited vertical space with larger floor footprint. Vertical type saves floor space with motor mounted above oil tank, ideal for dusty & humid sites to keep motor away from oil.
Is non-standard customized hydraulic power unit available?
Customization is supported: modified tank size, air/oil cooler, solenoid valve stack, accumulator, pressure transducer, digital pressure gauge, explosion-proof or variable-frequency motor for automatic machinery and pressing equipment.
